MagicBot Gen1 MagicLab
174 cm
Shipping 9 of 9 specs
MagicBot Gen1
Shipping 2024
Full-size 1.74 m, 42-DOF industrial humanoid already deployed on real factory production lines for inspection and material handling.
Overview

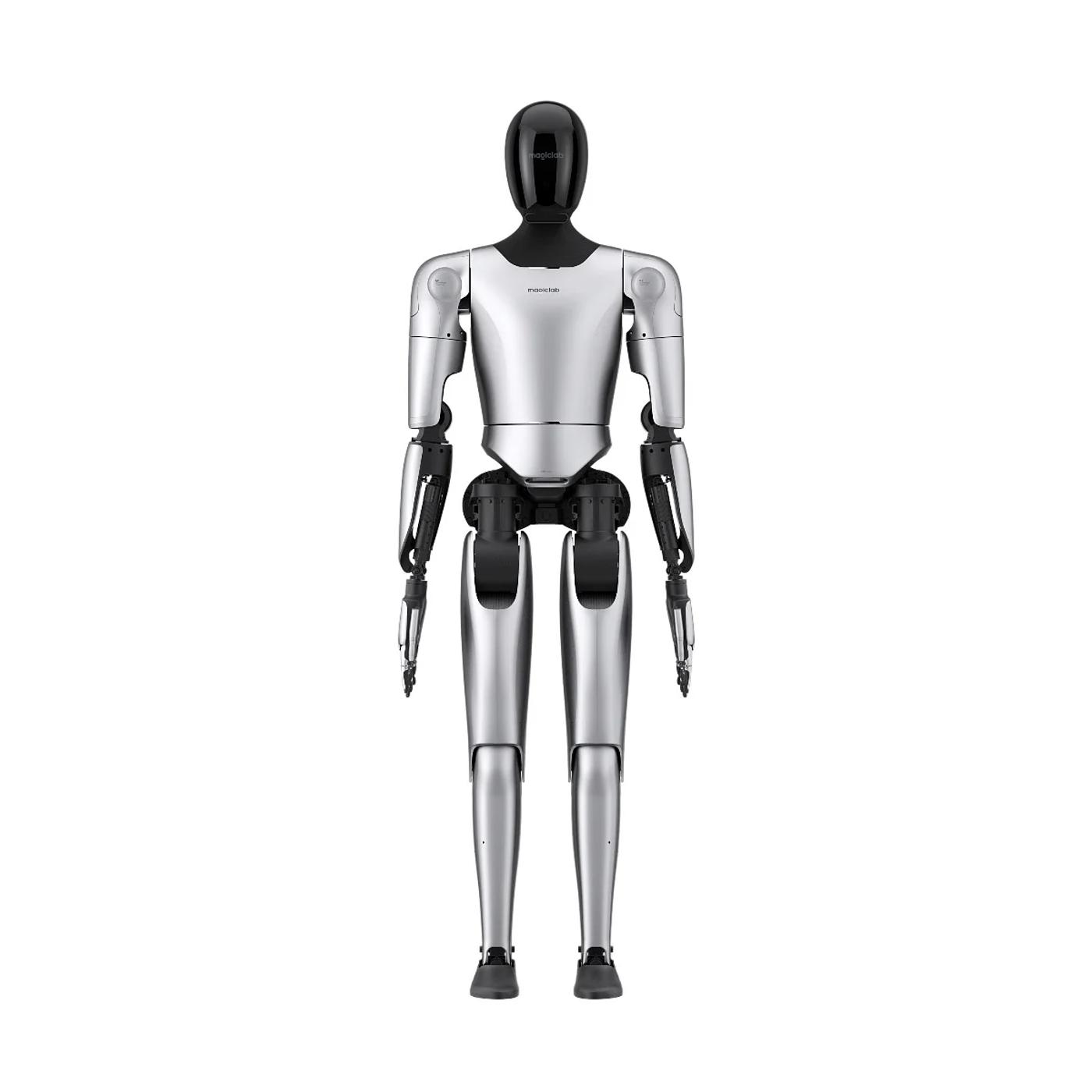

The MagicBot Gen1 is MagicLab's full-size general-purpose industrial humanoid: 1.74 m tall, about 70 kg, with 42 active degrees of freedom and hands offering 11 DOF each. It runs 3–5 hours on a 25 Ah (1.35 kWh) battery, moves at ≥4 km/h, and is driven by joints producing ≥350 N·m, an 8-core CPU and a 100 TOPS AI processor running MagicLab's Magic-Mind model. It has been deployed on real electronics-factory production lines since December 2024, performing inspection, material handling, pick-and-place and barcode scanning, including collaborative multi-robot handoffs.
Capability evidence
- Factory production-line workMultiple MagicBots deployed on an electronics production line performing inspection, material handling, part placement and barcode scanning. Interesting Engineering ↗ · 2024-12
- Multi-robot collaborative handoffOne robot transfers a material box to a workstation where a second robot retrieves and mounts components — a coordinated multi-robot workflow. Interesting Engineering ↗ · 2024-12
Bender
Need this kind of work done?
We assess your use case and choose the right robot across 20+ manufacturers — then deploy and operate it for you as a managed service.
In context
MagicBot Gen1 among its peers
Pick a specification. We’ll surface the closest comparable robots automatically.
Related robots
MagicLab Shipping MagicBot Z1
MagicLab's 1.37 m agile bipedal humanoid with 24 DOF, 3D LiDAR perception and about 2 h runtime; sold via official purchase inquiry.
- Height
- 1.37 m
- Payload
- 2-3 kg per arm
- DoF
- 24 (up to 50 dev version)
Price
Price on request
